TRIPLEX FINISHING MOWER Models 450 550 650 750

ALLIED BY FARM KING HAS BEEN MAKING FINISHING MOWERS FOR MORE THAN 15 YEARS.

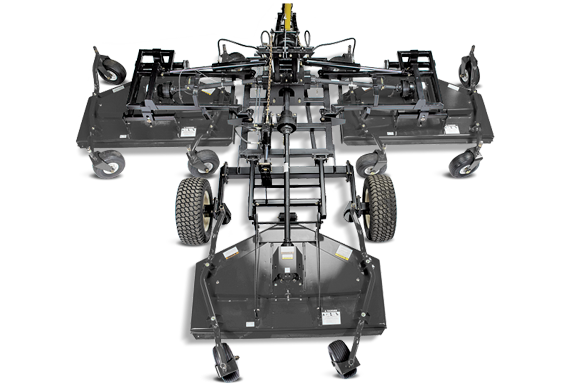

Three of these finishing mowers together create one magnificent volume grass trimmer: the Triplex Finishing Mower. Nine blades generate a powerful vacuum for a crisp, clean cut. Each deck floats independently over rolling terrain for a uniform, manicured trim.

Model 450 550 650 750
Cutting Width 11' 13.6' 16' 19.9'
Transportation Width Bottom/Top 67"/67" 86"/100" 67"/67" 79"/102"
Transportation Height 92" 84.5" 92" 121.5"
Transportation Length 15' 9" 15' 9" 15' 9" 16' 9"
Recommended HP 45 hp 55 hp 65 hp 80 hp
Weight 2730 lb 3919 lb 3590 lb 4633 lb

Features

TRANSPORT
The Triplex Finishing Mower is designed to be transported with ease. A cast clevis hitch is standard and a 2-5/16" ball hitch is optional for road transport. The 5-position hitch adjustment makes it easy to move, regardless of the hitch height of the tow vehicle. The decks are lifted into position by hydraulic cylinders and are automatically locked in place for transport. The decks are unlocked right from the tractor seat using a cable, or can be released using the optional hydraulic system.
ROLLER BEARINGS
Tapered roller bearings in the wheel hubs ensure long- term reliability without needing frequent lubrication. The standard front UHMW roller prevents scalping on uneven turf.

BLADE OVERLAP
There is a 1-5/8" blade overlap on the 450, while all the other models have a 2-5/8" blade overlap. This overlap helps to prevent stripping, especially when turning.
YOKE DESIGN
A forgiving yoke design creates the ability to follow the terrain, yet maintain a seamless finish, available on models 550 and 650.

WHEELS
The model 750 has four wheels on each of the three decks. Models 650 and 550 have four wheels on the wing decks and two on the center deck. The 450 has three wheels on the wing decks and two on the center deck.
