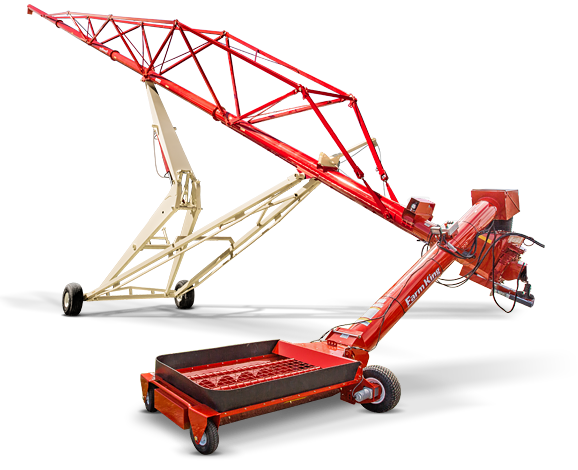

BACKSAVER AUGER Models 10", 13" and 16"

THE FARM KING BACKSAVER AUGER IS DESIGNED BY THE PEOPLE WHO KNOW AND UNDERSTAND YOUR GRAIN HANDLING NEEDS.

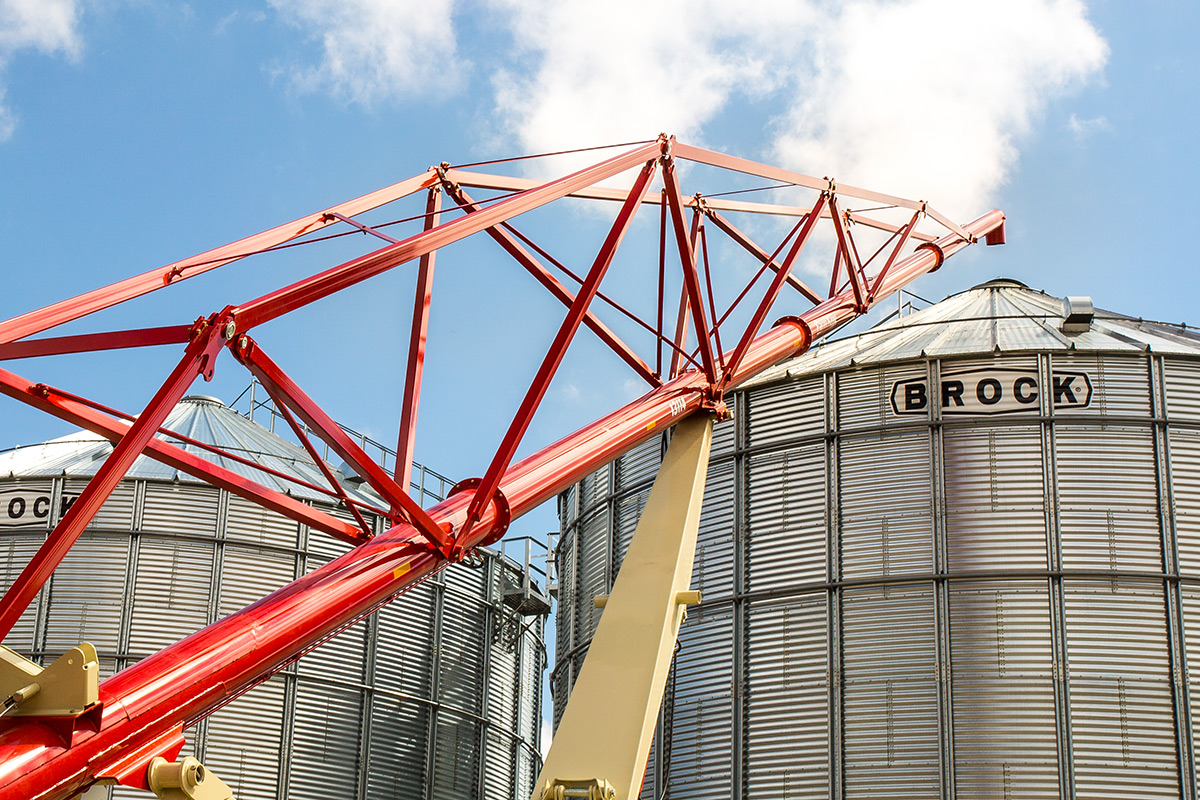

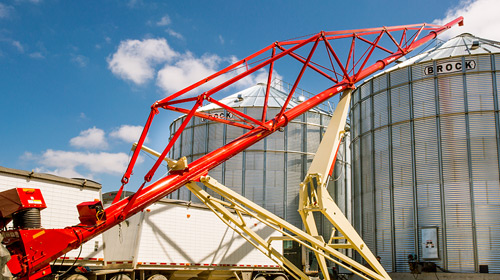

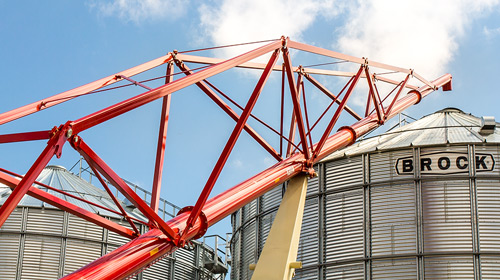

Farm King has been manufacturing BackSaver augers for more than four decades. The same principles used back then still apply today when choosing materials that go into every auger, grade A steel and functional design. Models range in lengths of 50 to 104 feet accompanied by 10, 13 and 16-inch tube sizes. A patented bridge–like support system allows the auger tubing and flighting to remain stable at all times including raising and lower of the auger. The hydraulic scissor lift resurrects the auger in virtually no time at all. When the spout is in the desired location, a safety hydraulic ball valve can be adjusted to ensure the augers stays when and where you want even in unpredictable weather. The recommended horsepower for peak operation ranges from 40-175 depending on auger size.

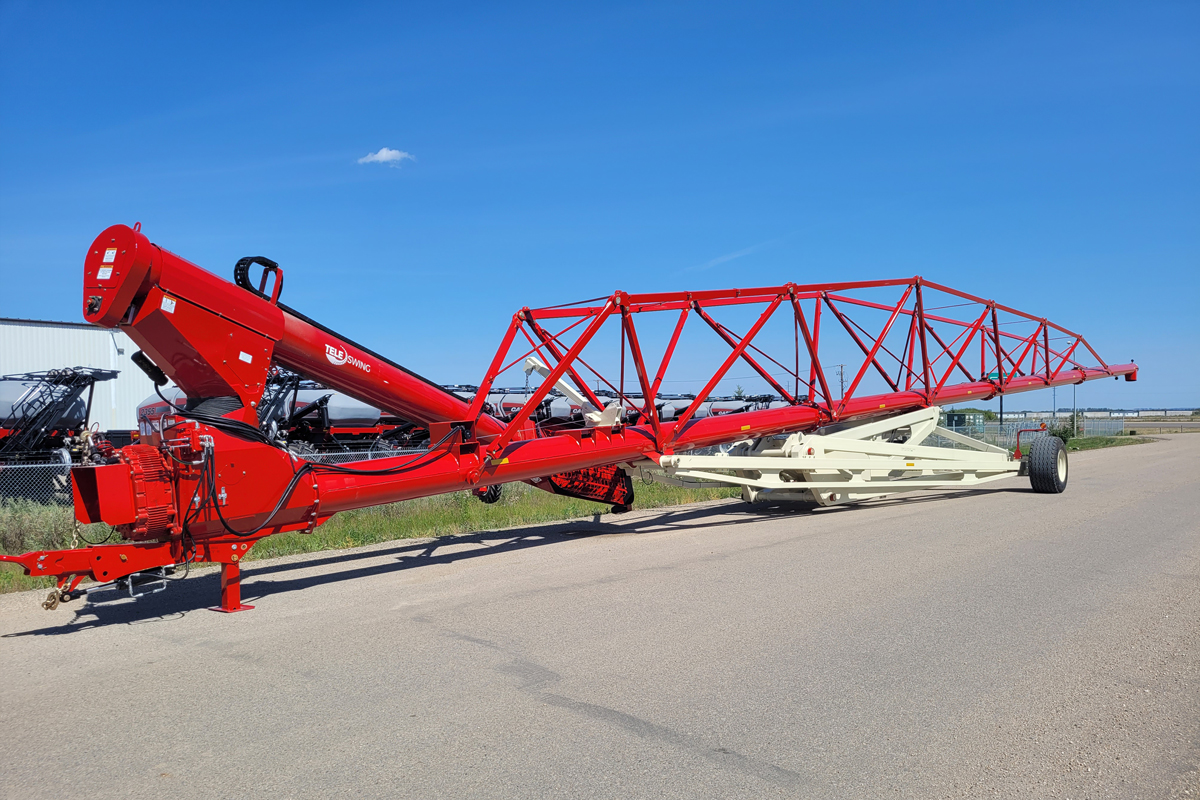

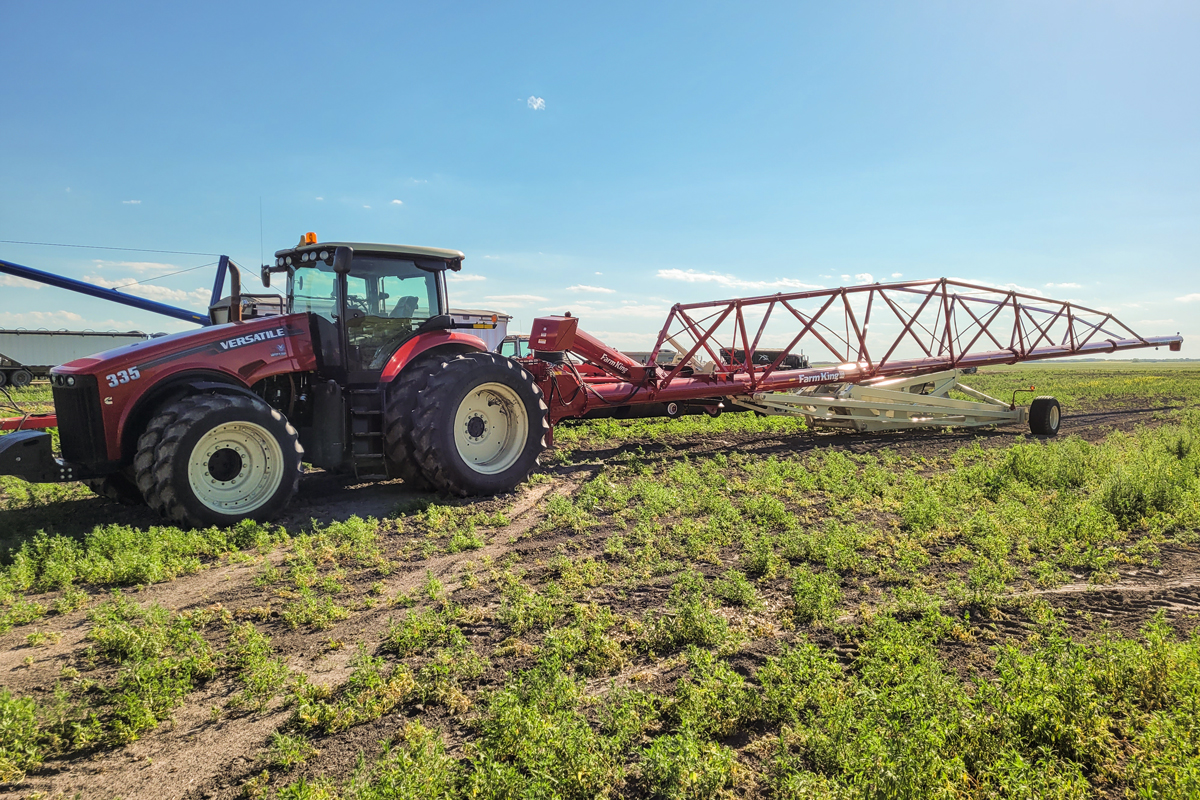

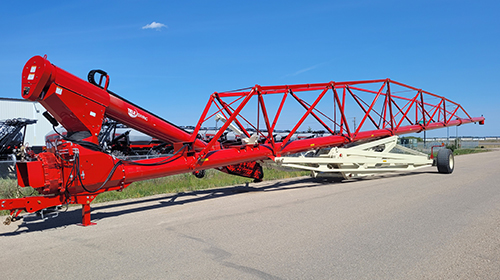

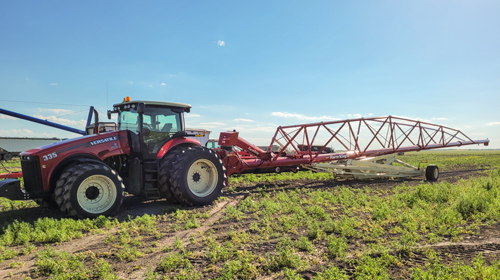

With 10", 13" and 16" diameter tubing by up to 104' length, the operator is able to move large quantities of grain in short periods of time. Transporting the auger has never been easier with a maximum transport height of 15'.

  • Models 10" and 13"
FARM KING BACKSAVER AUGERS ARE PRACTICAL, ECONOMICAL AND DEPENDABLE.

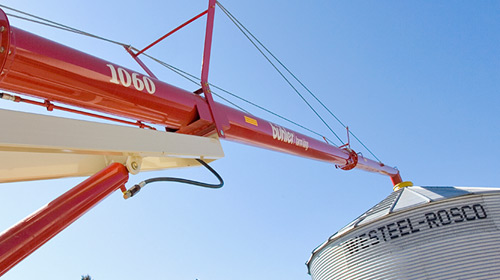

That dependability has been a benchmark of Farm King BackSaver Augers for many decades. Auger tubing sizes are available in 10" or 13" diameters and lengths ranging from 50 to 114 feet. The 43-1/2" x 60" intake hopper invites large quantities of grain to be quickly moved up the auger and into the bin.
  • 16" Model
THE 16" FARM KING GRAIN AUGERS ARE DESIGNED BY THE PEOPLE WHO KNOW AND UNDERSTAND YOUR GRAIN HANDLING NEEDS.

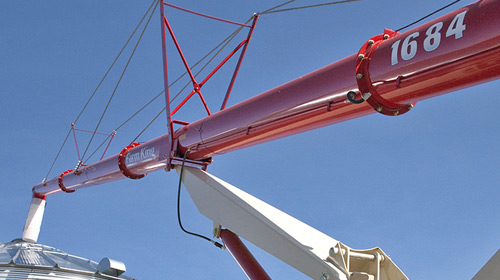

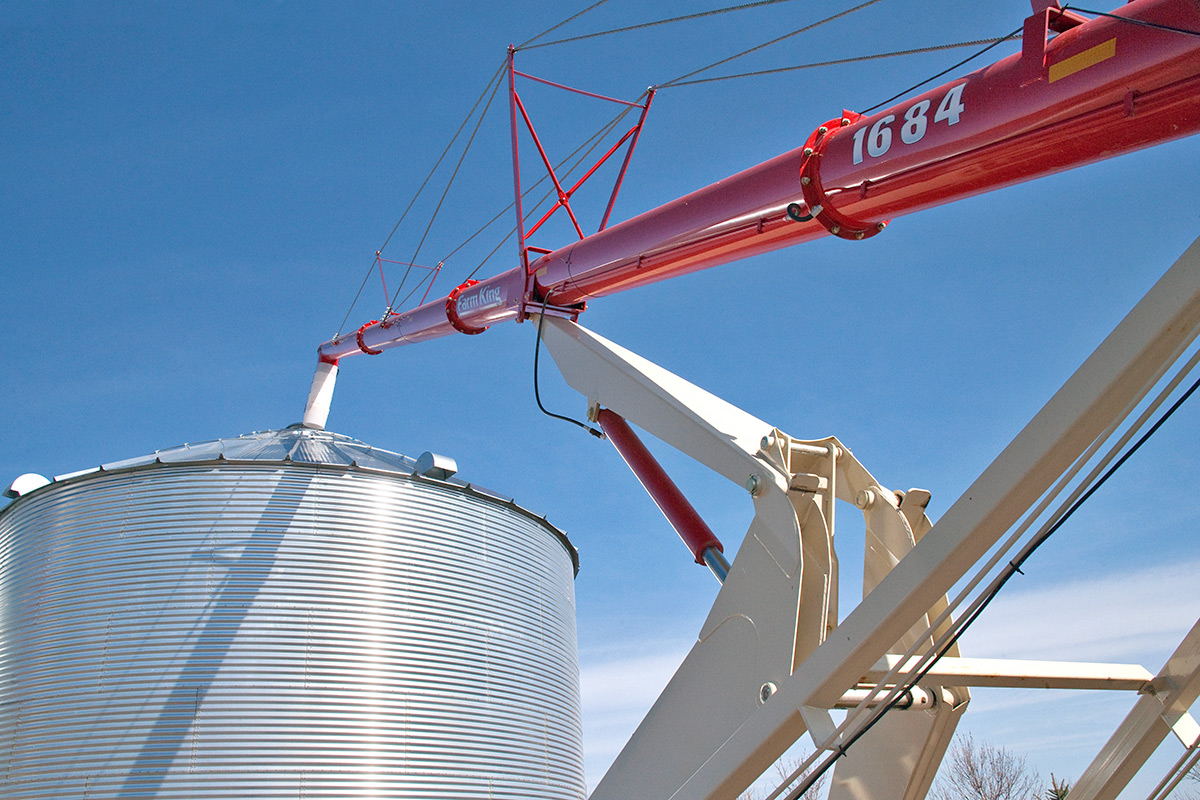

The large 16" tubing by up to 104' length allow the operator to move large quantities of grain in short periods of time. Equipped with a 3" lighting shaft, the Farm King auger handles even the dampest crops with ease.

Features

SELF-LEVELING

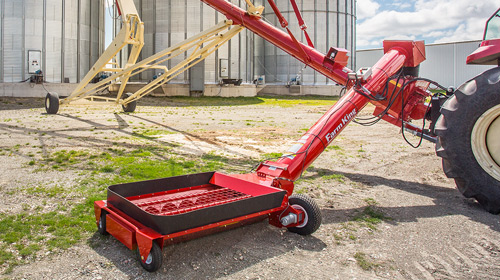

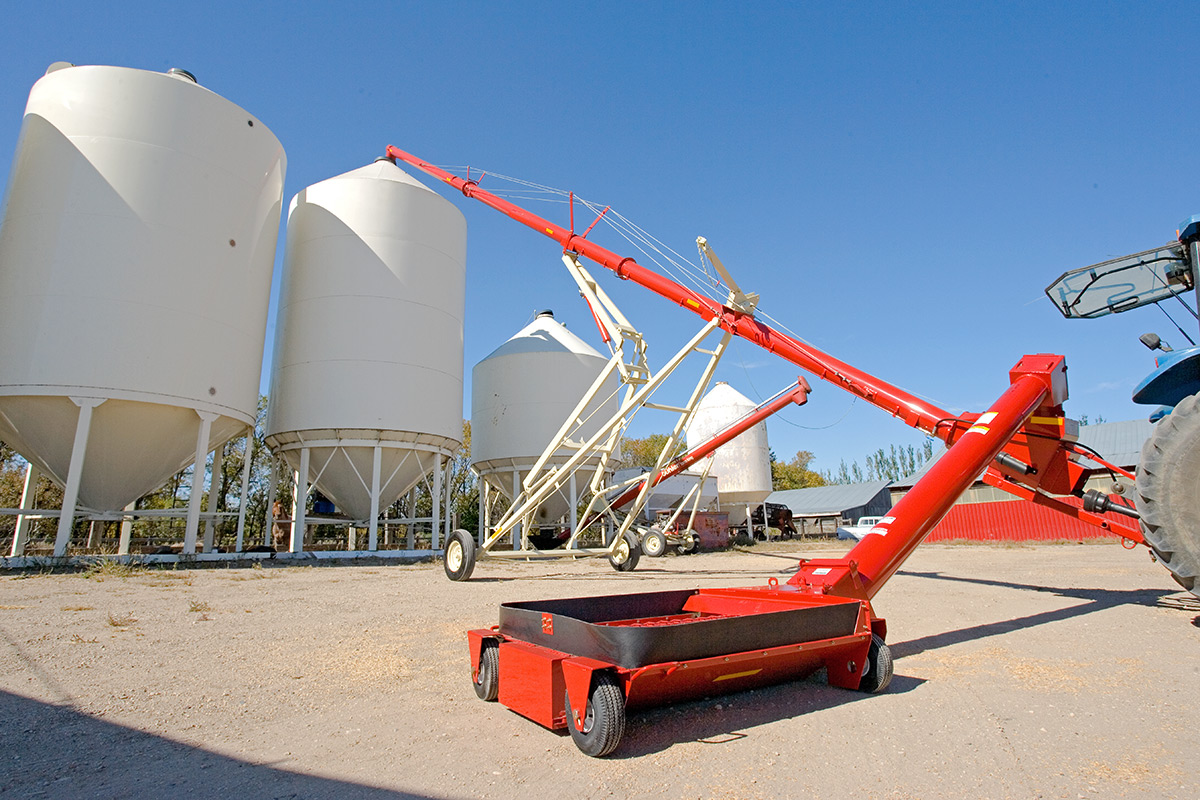

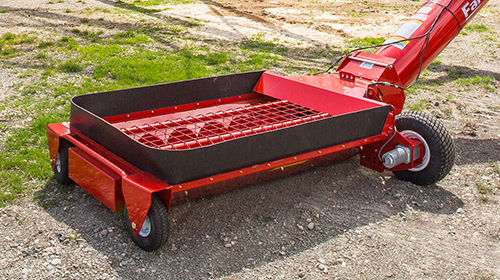

The self-leveling hopper on the swing-away auger will remain level regardless of auger height. The unique design allows the intake hopper to be loaded on uneven terrain. Increased flexibility relieves the hopper of unnecessary down pressure on all hopper parts.
HYDRAULIC CYLINDERS
Powered by a heavy-duty hydraulic cylinder (two on model 16104, shown), the unique scissor lift undercarriage is capable of holding the auger at a 44° angle when fully extended. With the cylinders completely compressed, the auger angle changes to 5° in transport mode.
HYDRAULIC CONTROLS
Using the auger-mounted hydraulic controls, the swing away auger can be lifted into position for transport and the hopper can be moved back and forth. This system removes most of the physical labor that was once required during grain handling.

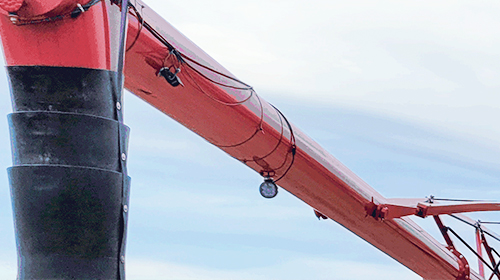

ADJUSTABLE LIGHT
A lighting kit, available on 16" models, provides light where it is needed most when unloading after hours. One light, located on the swing-away auger, provides light to the hopper and truck unloading area. Another light on the end of the auger tube directs light to the auger spout. The high quality, flexible spout is standard.
UNDERCARRIAGE

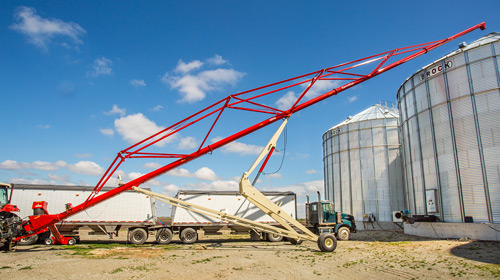

The scissor lift undercarriage, exclusive to Farm King BackSaver Augers, requires less hydraulic pressure to raise and lower the auger. The wide undercarriage is stable and solid while still meeting transport requirements. Once positioned, a shut-off valve on the underside of the auger tube limits the circulation of the hydraulics so the auger will maintain its height.
DUAL SPOOL VALVE
The optional two spool valve allows for hydraulic operation of the intake hopper winch and the hopper mover while only using two remote valves. The hydraulic controls eliminate the need to operate the winch and intake hopper by hand.

Options

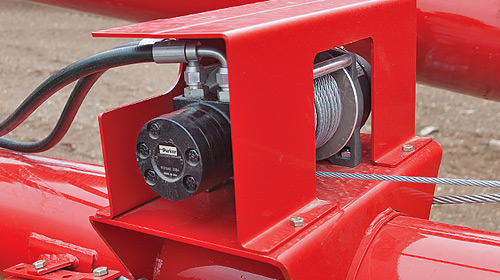

HYDRAULIC WINCH
An hydraulic winch easily lifts the hopper into place for transport. The lever and hydraulic valve are mounted to the main auger tube for easy access. Standard on model 16104 and optional on 10" and 13" BackSaver models.
HYDRAULIC DRIVE WHEELS
Each 16104 Farm King auger comes standard with a hydraulically controlled intake hopper. By simply moving the hydraulic lever, the intake hopper can be moved into precise position under hopper bottom and end dump trucks. Optional on 10" and 13" models.
HYDRAULIC HOPPER MOVER
The standard hydraulic hopper mover adds a powerful hydraulic motor to each of the inside wheels on the swing away hopper so the hopper can be positioned easily and with minimal effort. The control lever for the mover is mounted on the intake auger tube for easy access. Optional on 10" and 13" models.
AUGER STEER
The auger steer is designed to make modern augers easier to maneuver. The auger steer assembly is attached to the wheel/spindle hub assembly on the axle frame. Two hydraulic cylinders on either side of the auger frame control the side-to-side wheel motion, controlled by the hydraulic system on the tractor.

Manuals

10" and 13" PowerMover Date Posted
Operator and Parts 2010 November 2010
Operator and Parts 2009 December 2009
16" x 84' Models Date Posted
Operator and Parts 2016 May 2016
Operator and Parts 2012 July 2012
16" x 104' Models Date Posted
Operator and Parts 2016 August 2016
Operator and Parts 2014 August 2014
Operator and Parts 2012 May 2012
Operator and Parts 2011 September 2011
Operator and Parts 2010 November 2010
Operator and Parts 2009 September 2008
Operator and Parts 2008 September 2005
Operator and Parts 2007 September 2004
Operator and Parts 2006 February 2004
