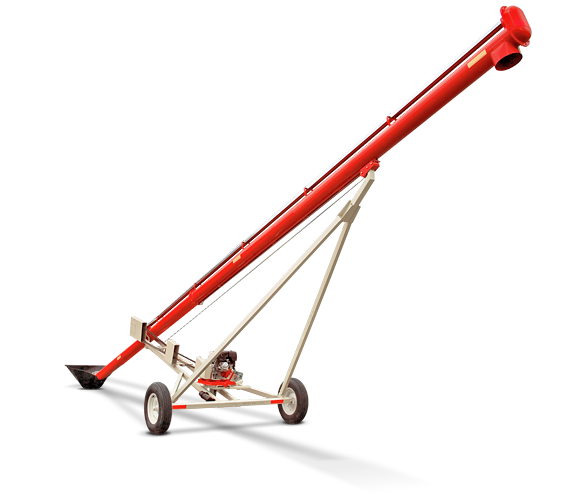

CONVENTIONAL AUGER Models 8", 10" and 13"

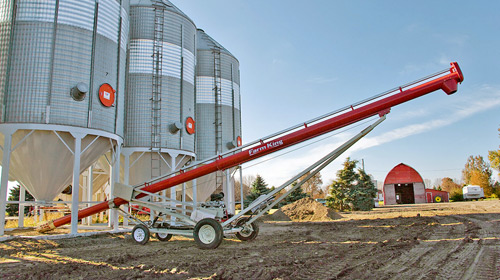

The gearbox, featuring left- or right-side drive, is positioned to allow the auger to reach deeper into the bin. The ductile casting houses quality oil seals, ball bearings and casehardened, forged gears, meaning the auger runs smoothly and requires less power.

8", 10" and 13" models are available with an optional reverse shift gearbox. Double flighting intake has a brass bushing on all conventional auger intake guards. The narrow safety guard and removable clevis hitch improve access to bins with small auger ports. A storage bracket holds the clevis hitch when not in use.

Model 831 836 1031 1036 1336
Tube width 8" 8" 10" 10" 13"
Tube lenght 31' 36' 31' 36' 36'
Wheel track 6' 0" 6' 6" 6' 0" 6' 6" 7' 5"
Belt drives Double Double Triple Triple Triple
Flighting 10 gauge 10 gauge 7 gauge 7 gauge 1/4"
Flighting shaft 1-1/4" 1-1/4" 2-3/8" 2-3/8" 2-3/8"
Drive line 1-1/4" 1-1/4" 1-3/8" 1-3/8" 1-1/2"

Features

UNDERCARRIAGE
The wide stance of the undercarriage improves stability and is constructed with square tubes to enhance strength and durability. In addition to being well balanced, the undercarriage features automotive-type hubs and bearings that improve ease of handling. Reliable safety clutch winches are included.
INTAKE

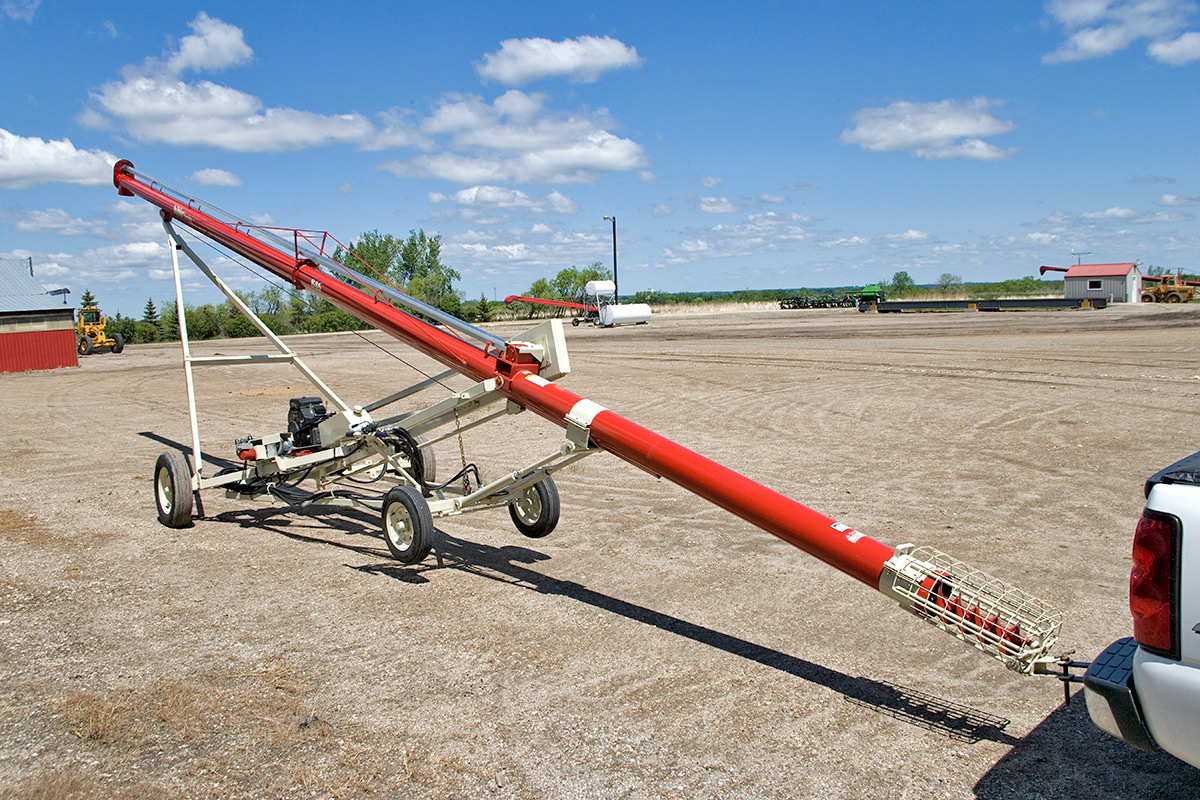

The double flighting intake increases grain flow. A narrow safety guard and removable clevis hitch improve access to bins with small auger ports.
TOP DRIVE
The top drive is housed in a sealed oil bath and features a chain-tightener. The components in the sealed oil bath are resistant to heat, dust, debris and moisture, reducing maintenance and enhancing the longevity of the chain and sprockets.
DRIVE OPTIONS
Several drive options are available, including direct PTO, belt-drive PTO, gas engine drive, and electric motor drive matched to a belt or direct drive.
ROLLER CHAIN
The top drive uses #60 roller chain on most 8" models, while #80 roller chain is used on the 10" and 13" models.
ENGINE MOUNT
Belt-drive engine models are equipped with a self-leveling motor mount and a self-tensioning belt system. Belt guards are included.
Reliable safety clutch winches are included.

Manuals

Models 7" & 8" x 36', 41', 46'; 8" x 51', 56'; 10" x 36', 41', 51' Date Posted
Operator and Parts - 2010 November 2010
Operator and Parts - 2008 March 2008
Operator and Parts - 2007 December 2006
Operator and Parts - 2006 February 2006
Operator and Parts - 2005 February 2005
Operator and Parts - 2004 March 2004
Operator and Parts - 2003 July 2003
Models 8" & 10" x 31' Date Posted
Operator and Parts - 2010 November 2010
Operator and Parts - 2009 January 2009
Operator and Parts - 2008 March 2008
Operator and Parts - 2007 December 2006
Operator and Parts - 2006 February 2006
Operator and Parts - 2005 February 2005
Operator and Parts - 2004 February 2004
Operator and Parts - 2003 July 2003
8" & 10" x 61' Date Posted
Operator and Parts - 2010 November 2010
Operator and Parts - 2008 March 2008
Operator and Parts - 2007 January 2007
Operator and Parts - 2006 February 2006
Operator and Parts - 2005 February 2005
Operator and Parts - 2004 February 2004
Operator and Parts - 2003 July 2003
13" x 36' Date Posted
Operator and Parts - 2010 November 2010
Operator and Parts - 2009 February 2010
Operator and Parts - 2008 February 2010
Conventional Auger Mover Date Posted
Operator and Parts - 2012 February 2012
Operator and Parts - 2009 March 2009
