CONVENTIONAL AUGER SERIES

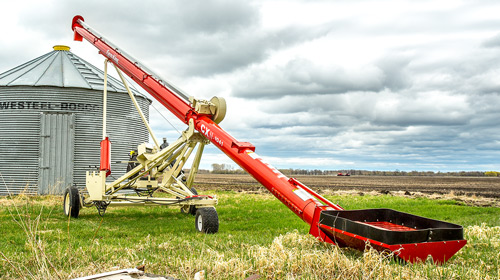

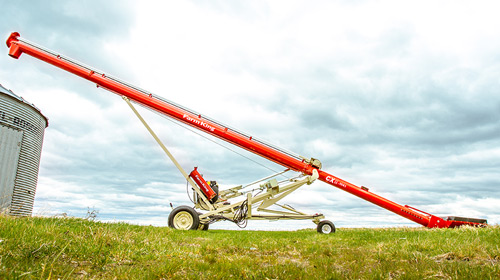

THE NEW CX2 SERIES OF CONVENTIONAL AUGERS FROM FARM KING ARE AVAILABLE IN LENGTHS OF 41', 51' AND 61' IN BOTH 8" AND 10" DIAMETERS.

The augers feature several enhancements to serviceability and stability and an expanded list of options. Several components have been standardized and redesigned to reduce repair and assembly time as well as to facilitate upgrades. The engine mount and leveling systems have been redesigned to ensure perfect belt tension at any auger position.

Model CX2-841 CX2-851 CX2-861 CX2-1041 CX2-1051 CX2-1061
Recommended HP 16 20 24 28 32 38
Capacity (bu/hr) 3487 3487 3487 5552 5552 5552
Rim Size 15" 15" 15" 15" 15" 15"
Hub Type 5 bolt 5 bolt 5 bolt 5 bolt 5 bolt 5 bolt
Fuel Tank Capacity (gal) 6.5 6.5 6.5 6.5 6.5 6.5
Lower Tube Reach 12' 2" 13' 0" 13' 2" 10' 5" 12' 10" 13' 0"
Maximum Spout Height 28' 2" 35' 2" 42' 0" 28' 3" 32' 8" 39' 3"

What's New

  • The CX2 auger intake is now 24 inches allowing for greater capacity
  • Strengthened the holding brackets for the winch making it stronger and keeps the auger centered and true
  • Improved the engine mount: Now +/- 2 degrees when engaged
  • Incorporated a pedestal style control panel that allows the user to walk in the direction of travel and has an arm rest
  • Includes a battery hold down strap to secure the battery while in transport
  • Warranty covers 1st year parts & labour and 2nd year parts only

Features

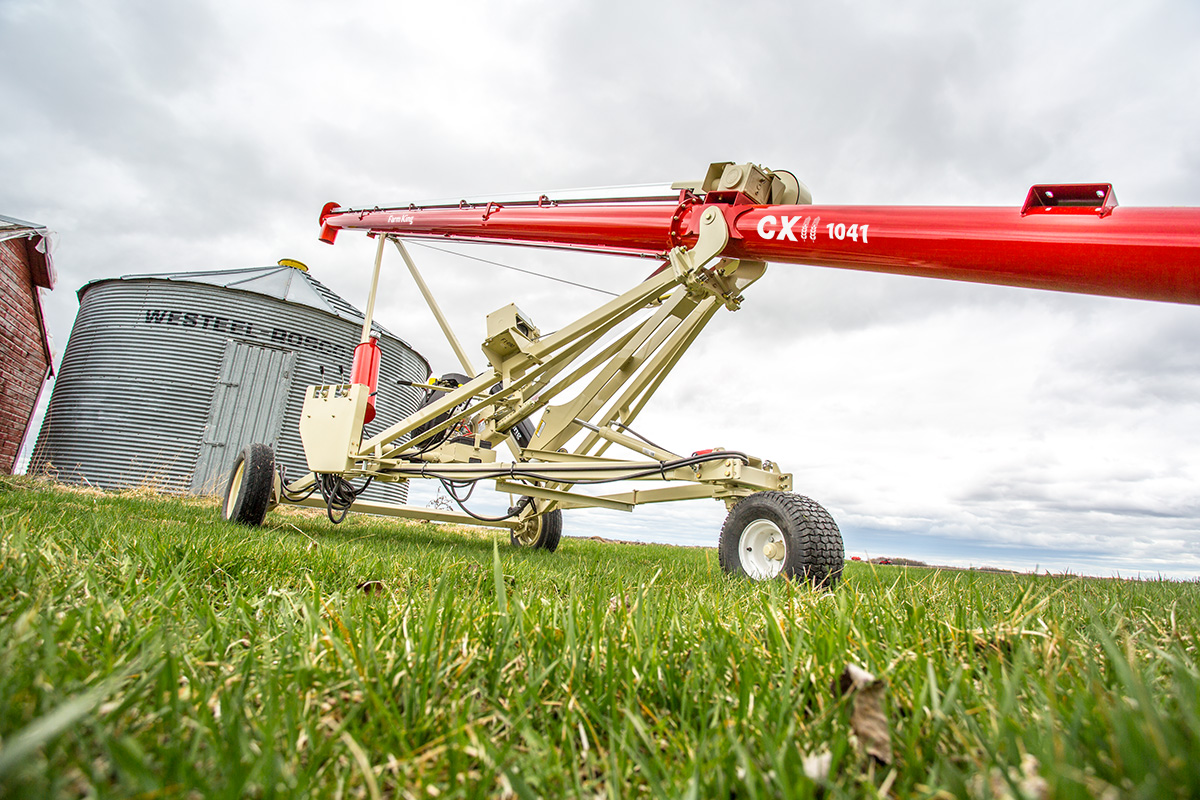

UNDERCARRIAGE
The wide stance of the undercarriage improves stability and is constructed with square tubes to enhance strength and durability. In addition to being well balanced, the undercarriage features automotive-type hubs and bearings that improve ease of handling.

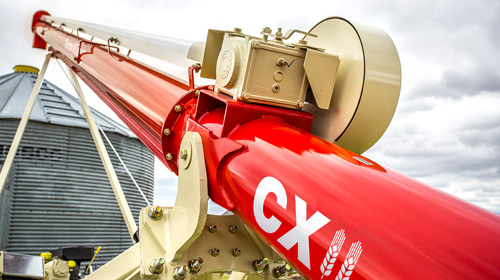

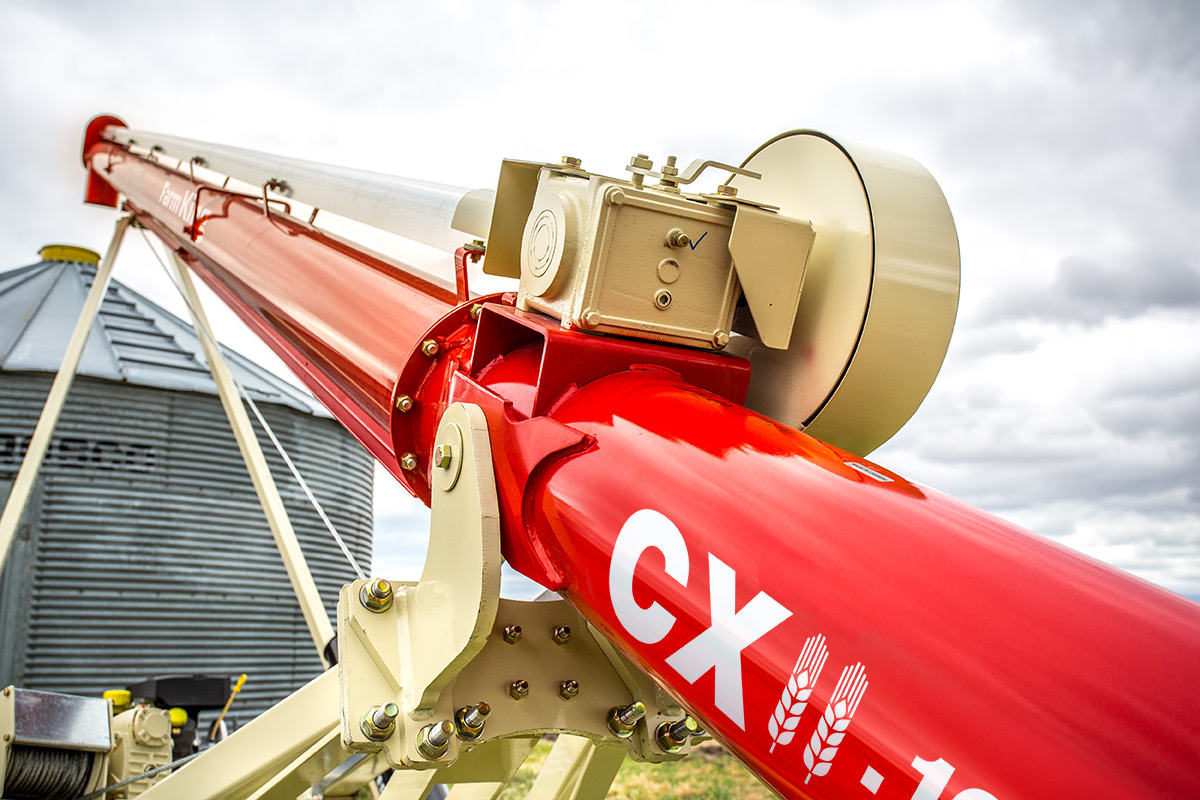

TOP DRIVE
The top drive is housed in a sealed grease bath and features a chain-tightener. The components in the sealed oil bath are resistant to heat, dust, debris and moisture, reducing maintenance and enhancing the longevity of the chain and sprockets.
TRANSPORT
The sturdy lightweight assembly allows the conventional auger to be easily transported. The trailing swivel wheels can be raised hydraulically to allow for increased turning radius as well as smooth transitions over uneven terrain.
ENGINE MOUNT
The new engine mount has no moving parts for easy set up. The engine is leveled by the belt guard system which ensures perfect belt tension at every auger position - the separate leveling rod has been eliminated.

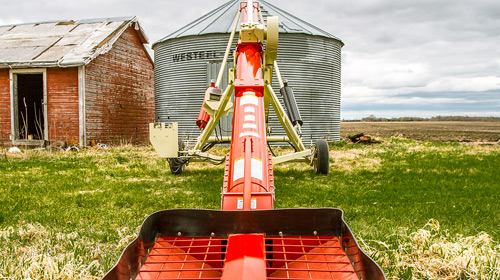

INTAKE
The intake end of the auger flighting is supported by a wooden, self lubricating bushing, which is highly resistant to dirt contamination and is maintenance free. A narrow safety guard and removable clevis hitch improve access to bins with small auger ports.
WHEEL SPINDLES
The wheel spindles are now a bolt-on style, allowing easy set up and replacement. This also helps facilitate the auger mover installation.

Options

DRIVE OPTIONS
Several drive options are available, including direct PTO, belt-drive PTO, gas engine drive, and electric motor drive matched to a belt or direct drive.
POLY SPOUT & HOPPER
Flexible poly spout for accurate bin filling is optional. Also optional is a poly hopper to minimize spillage.
AUGER MOVER
The completely redesigned mover incorporates power steering, hydraulic scissor lift for the intake, sport tread tires, hydraulic winch for auger height adjustment, improved engine mount and leveling systems and longer reach on the intake tube.

Manuals

CX2 Series Conventional Auger Date Posted
Operator and Parts 2017 July 2017
