FEED EQUIPMENT Hammermill and Rollermill

Farm King rollermills and hammermills are designed to maximize the nutritional value of feed.
Built with durable, heavy-gauge materials, Farm King rollermills and hammermills deliver top-quality processed grain with minimum maintenance and low operating costs.
  • ROLLERMILL

Rolled or crimped grain is an excellent way to increase the nutritional value of grain, making it easier for animals to digest for faster weight gain with more weight gain per bushel.

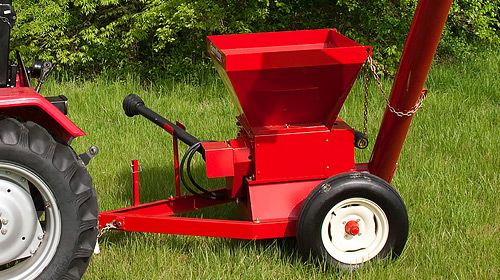

Available in three sizes, Farm King rollermills are capable of processing up to 300 bushels per hour. A manual feed gate sets the ow into the rollermill and the adjustable tensioner determines the thickness of nished grain. Double leaf springs ensure constant, even roller pressure.

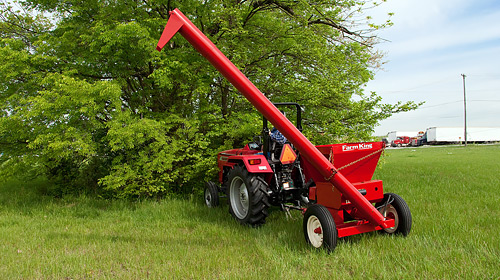

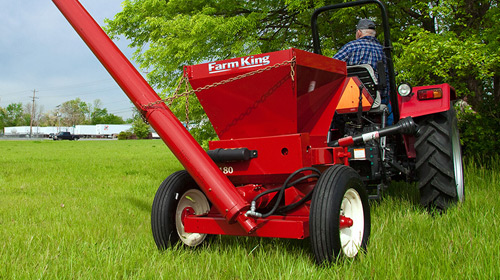

Machine-grooved rollers are available in steel or chrome and can be inexpensively re-machined up to three times if damaged or worn. An optional magnet removes nails and other metal objects from the grain and prevents them from damaging the rollers. An electric motor or PTO drives the 85 and 100.The 180 is PTO driven and can be equipped with a transport with 15" wheels and a 12' hydraulic discharge auger that swings a full 180 degrees.

  • HAMMERMILL

Grinding grain fresh every day means animals get the most nutritional value. A Farm King hammermill does the job quickly and economically, grinding as much as 75 bushels per hour. An adjustable motor mount ts most 5 to 7.5 horsepower electric motors. The sliding feed gate controls the amount of grain entering the mill and an optional magnet removes nails and other metal objects from grain and prevents damage to the hammermill. An optional discharge hopper makes it easy to move processed grain.

The hammers are made from high quality carbon steel for extra-long life.They can be reversed for use in four different positions for even longer wear.

Rollermill 85 100 180
Size 7" x 8" 10" x 10" 18" x 10"
Roll Diameter 8" 10" 10"
Grooves per inch 8 (6 corn) 8 (6 corn) 8 (6 corn)
Capacity 50-100 bu/hr 100-150 bu/hr 200-300 bu/hr
Drive required PTO or 3-5 hp electric PTO or 5-7.5 hp electric 40-60 PTO hp
Scrapers Optional Optional Standard
Weight 225 lb 317 lb 540 lb
Hammermill 60
Working Width 6"
Drive Double-V pulley
Capacity 75 bu/hr
Hammers 18, C1045 Carbon Steel
Rows 6
Screen Size 6" wide x 14" round
Weight 145 lb
