GRAIN CLEANER Models 360 and 480

Farm King builds two grain cleaner models that are designed to separate the dockage from grain before it gets shipped or stored, increasing profit in a variety of ways. Dockage reduces bin storage capacity and increases shipping costs. Cleaned grain dries faster and screenings can be used as animal feed.
Model 360 480
Drum Diameter 36" 48"
Drum Length 73" 98"
Total Length 97" 144"
Width (outside of tires) 55" 76"
Capacity 1000 bu/hr 2500 bu/hr
Weight 493 lb 1020 lb
Model 360
Cleans up to 1000 bushels per hour. The screenings are discharged onto the ground while cleaned grain is distributed through a built-in chute for convenient loading. The pulleys and adjustable mounts and are designed to fit most 1 hp motors. An optional 6" intake auger for easy loading.

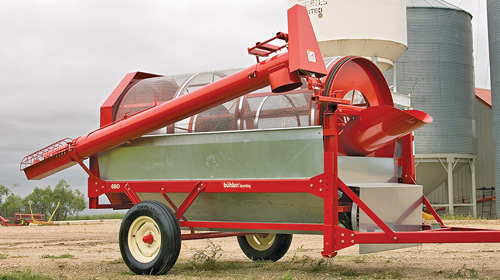

Model 480
Cleans up to 2500 bushels per hour, depending on moisture content and the amount of dockage. Trash and fines are thoroughly removed from the grain, with the fines being separated from larger screenings and are unloaded from separate chutes. An optional trash pan is available for collecting screenings.

Features

CLEANING PROCESS
A two-stage screening process includes an inner cone screen for large trash and an outer drum screen for fines. Cleaned grain is emptied through a built-in chute.
MOVE TRASH
An optional trash pan can be added to model 480 which collects the fines and with a built-in auger, moves the trash to one end of the cleaner. It is then loaded into a trash pan for easy cleanup.
TRANSPORT
The intake auger can be swiveled around to the side of the cleaner and securely attached for transport. 15" wheels and a full frame transport are included.
PRECISE PLACEMENT
The utility auger slide bar allows the auger to be placed in transport mode or positioned directly over the intake spout.
UNLOAD CLEAN GRAIN
An optional trash pan can be added to model 480 which collects the fines and with a built-in auger, moves the trash to one end of the cleaner. It is then loaded into a trash pan for easy cleanup.
INTAKE AUGER
The intake auger can be swiveled around to the side of the cleaner and securely attached for transport. 15" wheels and a full frame transport are included.
MODEL 360
MODEL 480
