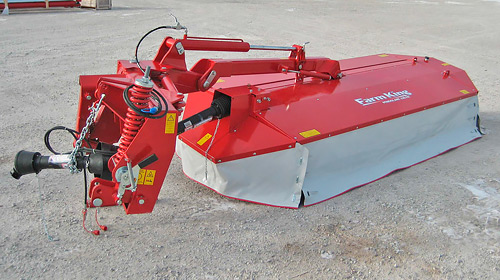

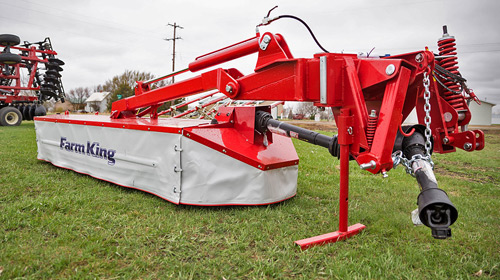

PENDOLARE DISC MOWER Models 245, 285, 320

FARM KING IS PROUD TO INTRODUCE THE PENDOLARE DISC MOWER SERIES TO THE CUTTING TEAM.

The Pendolare models are constructed using only the highest-grade steel and gear components. Cutting discs and blades are easily accessible by removing six bolts and the sturdy cover to reveal the inner workings of each disc assembly. Tractors ranging in horsepower from 65 to 95 can operate the three exclusive mower sizes with ease.

The cutting unit consists of a central pendulum suspension with double shock springs. This allows a constant adjustment of the weight on the ground and allows the cutting bar to follow the soil profile for a clean cut.

Model 245 285 320
Working Width 8' (2.4 m) 9' 4" (2.87 m) 10' 8" (3.29 m)
Conditioner Type n/a n/a n/a
Number of Discs 6 7 8
Number of Blades 12 14 16
Tractor Requirements 65 hp 75 hp 80 hp
Weight 1,370 lb (621 kg) 1,525 lb (692 kg) 1,675 lb (760 kg)

Features

TRANSPORT POSITION

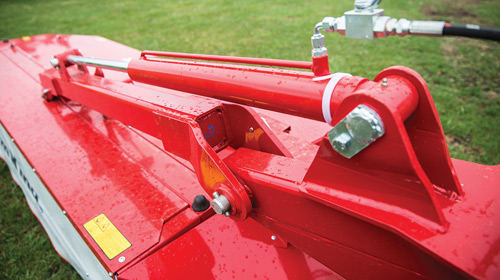

With standard transport the machine swings to the rear; with optional transport the machine gets raised to a vertical position, making perfect use of space and weight distribution. The single acting cylinder is used to raise the mower for transport. It has an automatic lock that can be released with a rope from the tractor.
HOT FORGED STEEL ROUND DISCS
Hot forged steel round discs provide a high quality cut in all conditions, while requiring less power. The size allows further setback from the stone guards and the shape prevents shock when stones are struck. The forged steel blades are particularly resistant and do not bend or flex. They last about three times longer than standard blades in most conditions and are flexed with strong high resistance bolts.
MAIN SUPPORT
Assembled in one module and attached to the cover with 6 bolts to maximize the strength of the support. It lets you easily inspect inside the cutter bar. Bearings with strong stress transmissibility (1.2" (30 mm) pitch) can bear the greatest shear strains and the bearings are spaced to enhance resilience. Pinion thickness is 0.7" (17 mm) and diameter of the shaft is 1.4" (35 mm).
CUTTER BAR BREAKAWAY
The machines are all fitted with the "non-stop" cutter bar breakaway, which means you can continue cutting without stopping the machine with no need to reverse if an obstacle is found. It is automatically rearmed without assistance from the operator or the hydraulic system.
GEARBOX
The heavy-duty gearbox cover has a thickness of 0.2" (5 mm) and features an integrated reinforcement. This helps prevent flexing of moving parts, especially on uneven terrain. The oil bath gearbox improves lubrication, provides faster cooling and efficient movement.
SHOCK ABSORBERS
Double spring shock absorbers allow setting the best weight for the mower to maintain even pressure on the ground, always giving a clean cut without damaging the grassy surface.

Manuals

Models 245, 280, 320 Date Posted
Operator and Parts Manual - 2016 August 2016
Operator and Parts Manual - 2014 July 2014
