DISC MOWER Models MDN 5, 6, 7

The Farm King MDN 5, 6 and 7 are constructed using only the highest-grade steel and gear components.

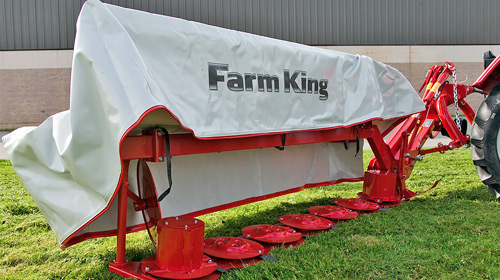

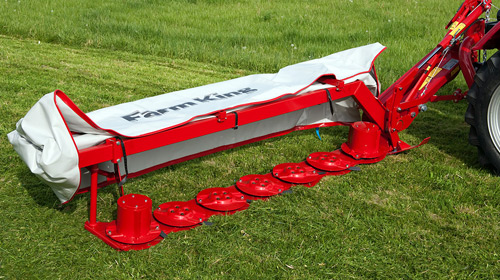

Cutting discs and blades are easily accessible by removing six bolts and the sturdy cover to reveal the inner workings of each disc assembly. Tractors ranging in horsepower from 40 to 50 can operate the three exclusive mower sizes with ease. Two cone discs are located on each end of the disc assembly to assist in swath formation and shaping.

Model MDN5 MDN6 MDN7
Number of Discs/Blades 5/10 6/12 7/14
Working Width 7' (2.10 m) 8' 1" (2.45 m) 9' 4" (2.85 m)
Blade Rotation Speed 3000 RPM at 540 G' 3000 RPM at 540 G' 3000 RPM at 540 G'
3-Point Hitch Cat. I / II Cat. I / II Cat. I / II
PTO 540 RPM 540 RPM 540 RPM
Tractor Requirements 40 hp (30 kW) 50 hp (36 kW) 55 hp (40 kW)
Weight 1,100 lb (499 kg) 1,200 lb (544 kg) 1,300 lb (590 kg)

Features

FREE-SWINGING BLADE
The MDN 5, 6 and 7 come standard with 15-inch discs and 4-inch long blades with a 3-inch blade overlap. The free-swinging blades create a precise cut when reaching rotation speeds of 3000 rpm.
TRANSPORTATION

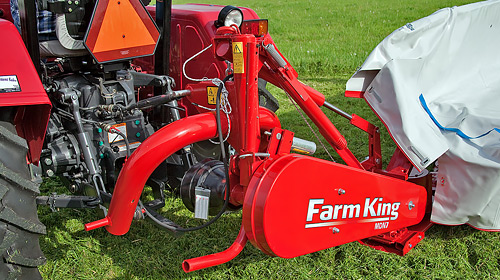

Transportation is effortless with the help of a single acting hydraulic cylinder that maneuvers the mower precisely in a matter of seconds. The transport mode features an automatic locking mechanism. Simply pull on the rope located near the 3-pt hitch assembly and the locking mechanism is deactivated to lower the mower into position.
HYDRAULICS
A single acting cylinder allows the operator to control the mower's position from the centrifugal force creates a seat of the tractor.

Manuals

Models 4, 5, 6, 7 Date Posted
Operator and Parts Manual - 2016 August 2016
Operator and Parts Manual - 2012 January 2012
