EASY RAKE Models RE10, RE12, RE14

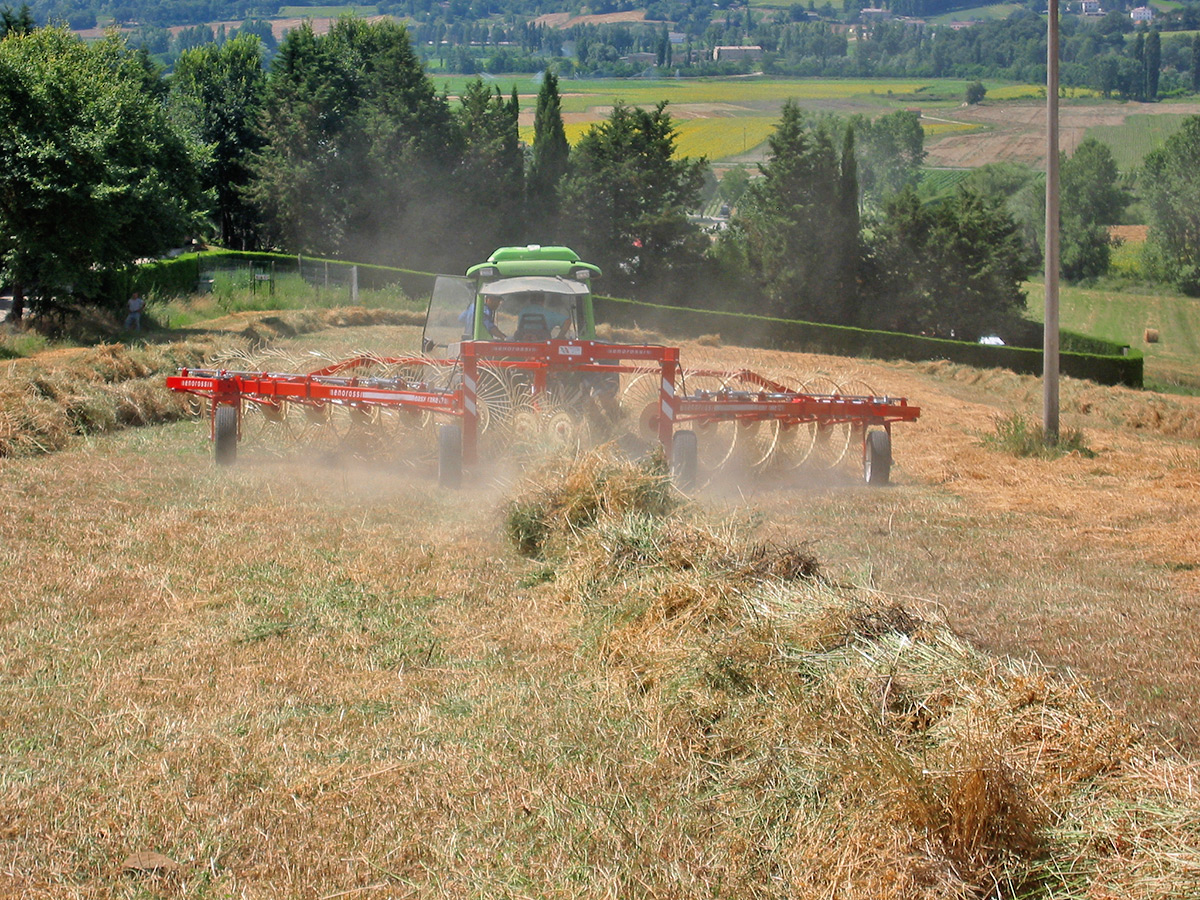

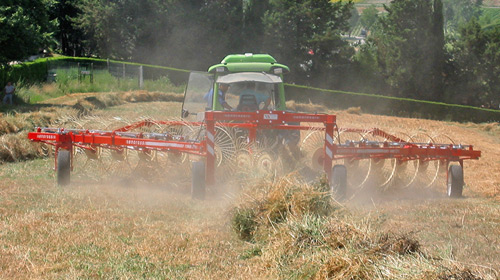

RAKING YOUR WINDROWS WITH THE FARM KING EASY RAKE ELIMINATES NUMEROUS FIELD PASSES AND PROVIDES UNIFORM ROWS.

The Farm King Easy Rake comes available with 10, 12 and 14 rake wheel configurations and working widths of 21, 24 and 27 respectively. Each rake wheel comes with a fully independent suspension spring and bounce adjustment chain. The adjustable chain prevents the rake wheels from gouging uneven field terrain but allow the wheels to stay closely conformed to the field surface.

Model RE10 RE12 RE14
No. of Rake Wheels 10 12 14
Working Width 20' 7" (630 cm) 24' 3" (740 cm) 27' 2" (830 cm)
Transport Width 8' (244 cm) 8' (244 cm) 8' (244 cm)
Transport Length 29' (880 cm) 31' (940 cm) 30' (908 cm)
Rake Wheels 60" (152 cm) 60" (152 cm) 60" (152 cm)
No. of Tires 4 4 6
Weight 3,250 lb (1474 kg) 3,450 lb (1565 kg) 4,320 lb (1960 kg)

Features

RAKE WHEELS

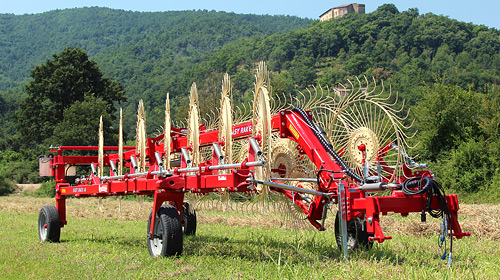

Easy Rake models RE10 and RE12 come standard with 4 stabilization wheels and the RE14 model comes equipped with 6 wheels. These 205/70 R15 highway rated air filled tires aid in seamless transportation as well as superior traction in field applications. Wheels located on the rake wings are constructed using yoke design to ensure 360 degrees of maneuverability. Walking tandem axles are available as an option.
TRANSPORTATION

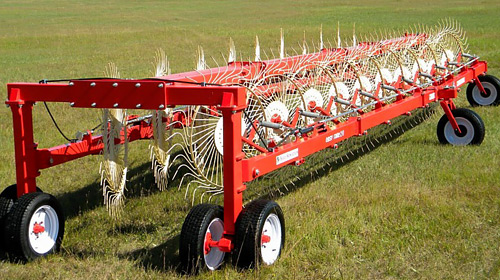

The Farm King Easy Rake has a maximum transportation width of 8' to help get you from field to field safely. Air filled highway service tires allow the Easy Rake to tow smoothly and get you into the field faster. Transport locks ensure that your rake stays closed until you are ready to use it.
HYDRAULICS
All three models of Easy Rake can be conveniently opened and closed using hydraulics. The two sides are independent of each other which allows the Easy Rake to operate just one side at a time.
CENTER WHEEL RAKE
All models have an optional center mounted hydraulically operated wheel rake for added separation of the middle windrow.

Manuals

Easy Rake Date Posted
Operator and Parts Manual - 2016 August 2016
Operator and Parts Manual - 2012 January 2012
