POST DRIVER Models 1450 and 2400

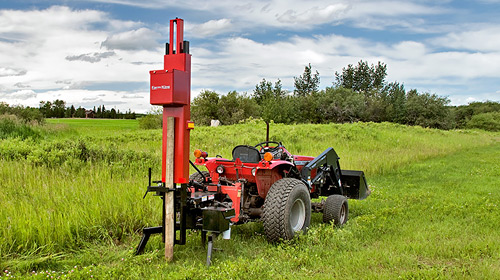

Model 1450
The Farm King 3-Point post driver works with your tractor or skid-steer for efficient effortless post driving. Built to be fast, powerful, durable, and maneuverable, Farm King 3-Point post drivers are ideal for use on the jobsite or on the farm.

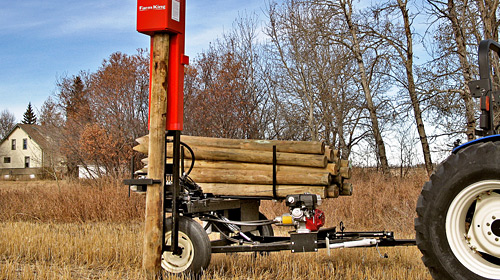

Model 2400
Farm King 2400 trailered post drivers makes work easy. Available in a PTO or 9hp engine models, Farm King post driver trailers can work with a tractor or behind a pick-up truck. Designed to be maneuverable and durable Farm King post drivers are perfect for farmers, ranchers, and contractors.

Model 1450
Mast 12" (305 mm) wide track
Hammer Weight 310 lb (141 kg)
Impact at Full Stroke 100,000 lb (45,360 kg)
Max Hammer Height Standard lift 105" (2.67 m)
Min Hammer Height 43" (1090 mm)
Max Hammer Stroke 62" (1570 mm)
Weight 1135 lb (515 kg)
Model 2400
Mast 12" (305 mm) wide track
Hammer Weight 310 lb (141 kg) empty, up to 700 lb (318 kg) ballasted
Impact at Full Stroke 100,000 lb (45,360 kg)
Max Hammer Height Standard lift 105" (2.67 m), 128" (3.25 m)
Min Hammer Height 43" (1090 mm), 66" (1676 mm)
Max Hammer Stroke 62" (1570 mm)
Weight PTO: 1190 lb (540 kg), Engine: 1300 lb (590 kg)

1450 Model Features

STANDARD EQUIPMENT
  • Category I and II 3-point hitch
  • Optional skid steer Quick-Tach mount frame
  • Integral stand
  • PTO driven hydraulic pump
  • Self-contained hydraulic system
  • Full hydraulic controls
OPTIONAL EQUIPMENT
  • Post guide
3-PT BASE
  • 6" x 8" base pads, wide stance for stability
  • Welded, tubular steel construction
  • Category II bushings included
SKID STEER QUICK-MOUNT FRAME
  • 45" wide, 235 lb (107 kg)
  • Includes hydraulic drive motor with couplers

2400 Model Features

STANDARD EQUIPMENT
  • PTO or engine driven hydraulic pump
  • Self-contained hydraulic system
  • Full hydraulic controls
  • Large hammer face
  • Hammer ballast box with lid
  • Welded frame, axle and counter weight box reduces set up time
  • Rear stand to prevent backward flip over
OPTIONAL EQUIPMENT
  • Mast extension
  • Hydraulic extendable hitch
  • 2" ball hitch receiver
  • 6.70 x 15 4-ply bias tires
  • Post guide
  • Post rack

Manuals

Model 1450 Date Posted
Operator and Parts Manual - 2011 November 2011
Model 1450 Skid Steer Date Posted
Operator and Parts Manual - 2011 November 2011
Model 2400 Date Posted
Operator and Parts Manual - 2011 November 2011
