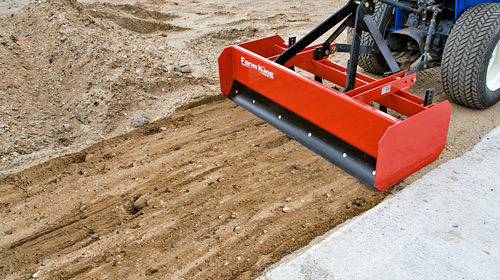

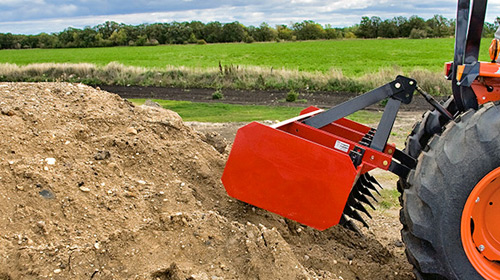

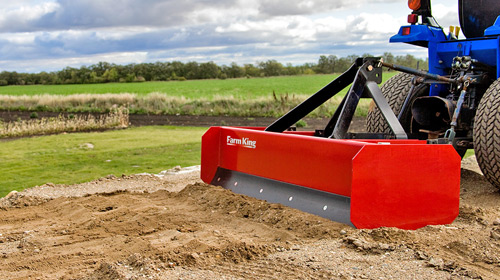

BOX SCRAPER Models 483, 604, 725, 846

TWO 1/2" X 6" REPLACEABLE, BACK TO BACK BLADES MAKE THIS BI-DIRECTIONAL SCRAPER EXTREMELY VERSATILE.

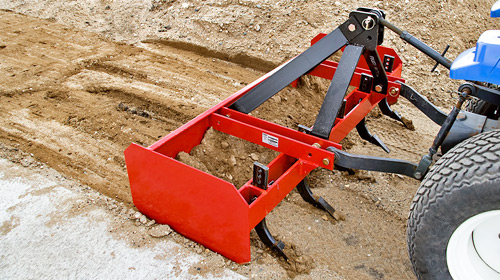

The scarifier shanks are heat treated and are easily adjusted for depth. The Farm King Box Scraper features a replaceable / reversible back to back cutting edge as well as replaceable / reversible scarifier shanks for forward and reverse use.

Model 483 604 725 846
Width 48" 60" 72" 84"
Capacity 6 cu. ft. 8 cu. ft. 10 cu. ft. 12 cu. ft.
Max Working Depth 4" 4" 4" 4"
3-Point Hitch Cat. 1 Cat. 1 Cat. 1 Cat. 1
Tractor Requirements 20 - 40 hp 20 - 45 hp 25 - 55 hp 30 - 65 hp
Weight 320 lb 378 lb 428 lb 469 lb
