DISC Models 505, 605, 705, 805
FARM KINGS DISCS ARE HEAVILY CONSTRUCTED TO PROVIDE LONG LASTING EQUIPMENT FOR MULTIPLE APPLICATIONS.

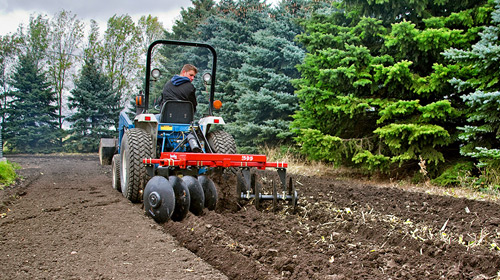

Specializing in seedbed preparation, the Farm King disc penetrates the crusty, hard packed soil and rejuvenates it for easy seed application. Hardened steel discs help churn the soil to reveal a nutrient rich layer and deeper rich soil texture. Notched and smooth blades are available in any combination. Each Farm King disc is Quick hitch compatible.
| Model | 506 | 605 | 705 | 805 |
|---|---|---|---|---|
| Width | 5-1/2' | 6-1/2' | 7-1/2' | 8-1/2' |
| Discs | 16 | 20 | 24 | 28 |
| Disc Diameter | 18" | 18" | 20" | 20" |
| HP Requirements | 20 - 40 hp | 25 - 50 hp | 30 - 60 hp | 30 - 65 hp |
| Weight | 649 lb | 732 lb | 899 lb | 1084 lb |
Features

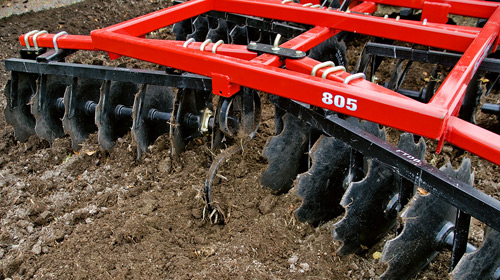

Discs are manufactured with 2” x 3” tubing to give the piece a sturdy foundation. The dual gangs offer 5 adjustment points. The center pivot allows the gang to be easily maneuvered into the desired angle. After the angle is selected, simply insert the pin and hairpin clip and the disc is ready for use.
The self-aligning bearings ensure each disc assembly follows the contours of the ground. Individual discs are evenly spaced 7 ½ inches apart to allow for easy soil follow through.
Options
Various options are available on the complete line of Farm King discs. Center sweeps can be added on the back to assist in breaking up undisrupted soil in-between the middle discs. Farm King discs can come equipped with the optional scraper kit to keep discs free of clinging soil.
Disc options include notched or smooth style disc patterns. All models can come equipped with notched, smooth style discs or a combination of both.
Manuals
| Disc | Date Posted |
|---|---|
| Operator and Parts Manual - 2010 | November 2010 |
| Operator and Parts Manual - 2009 | December 2008 |
| Operator and Parts Manual - 2008 | August 2006 |
| Operator and Parts Manual - 2007 | August 2006 |
| Operator and Parts Manual - 2006 | July 2005 |
| Operator and Parts Manual - 2005 | December 2004 |
| Operator and Parts Manual - 2004 | September 2003 |
