FLEX WING ROTARY CUTTER Model 1530

THE NEW FARM KING 1530 ROTARY CUTTER IS DESIGNED FOR THE TOUGHEST CUTTING JOBS IN HEAVY, THICK GRASS AND WEEDS.

With a class-leading 7" blade overlap for a thorough cut and a working range of +/- 25°, this machine is ideal for cutting deep grassy ditches and trenches. There is a 5 year warranty on the gearbox.

Model 1530
Width, Working 186 in (4.7 m)
Width, Overall 194 in (4.9 m)
Working Range +/- 25°
Cutting Height 2 to 15 in (51 to 381 mm)
Blade Overlap 7 in (177 mm)
Blade 0.5 x 4, Uplift
Weight 5900 lb (2676 kg)

Features

DECKS
The decks on this heavy-duty cutter, designed by Farm King from the ground up, are manufactured using 7 gauge steel. A deck protection ring minimizes stress on the deck while the stump jumper protects the mower deck and allows the assembly to glide over uneven terrain. The streamline deck design maintains strength and prevents buildup. Standard equipment such as a single chain guard attached to the entire deck limits the possibility of flying debris.
HEAT-TREATED BLADES
Each blade is heat-treated to enhance rigidity, while the heavy-duty gearbox is designed to be rugged and durable. The access panel located on the deck makes it easy to inspect, clean or replace the blades if necessary. The blades also have an industry-leading 7" overlap to make sure you get the best cut the first time.
SUSPENSION

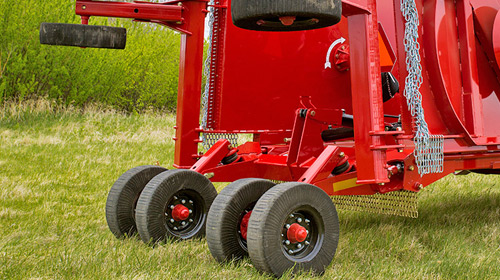

The suspension on the Farm King 1530 individually isolates each wheel assembly from the machine, reducing road vibration and terrain roughness. This provides a smoother ride and reduces shock stress on the frame, axle and driveline.
CUTTING WIDTH & TRANSPORT
The Farm King 1530 features an 186" cutting width in the working position and folds to only 96" for transport.
OPTIONAL EQUIPMENT
Several options are available to enhance the Farm King 1530 to properly suit the needs of your land including light kits, walking tandem, double axle and either laminated or aircraft tires.

Manuals

Model 1530 Date Posted
Operator and Parts Manual - 2015 April 2016
