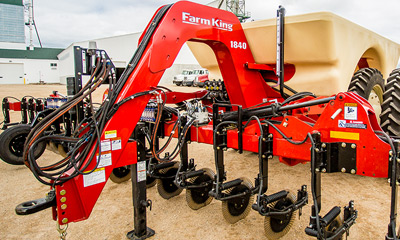

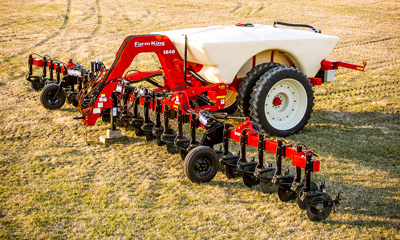

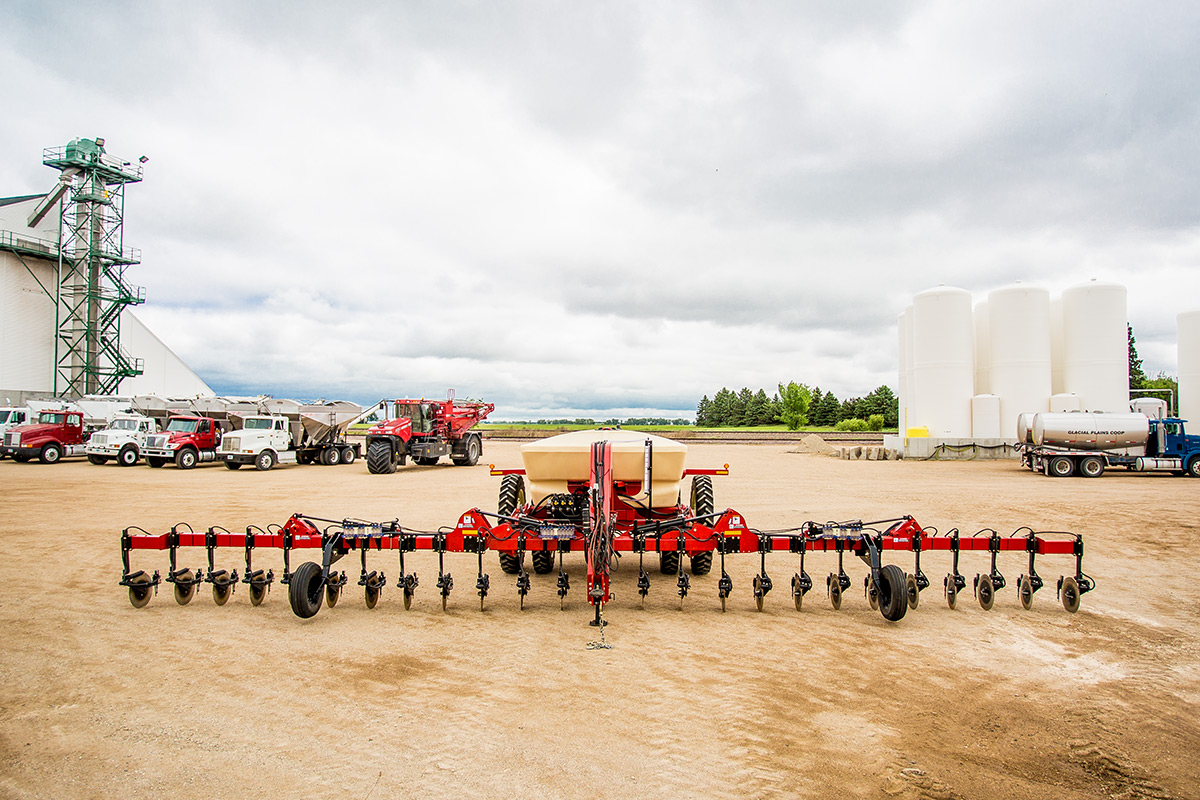

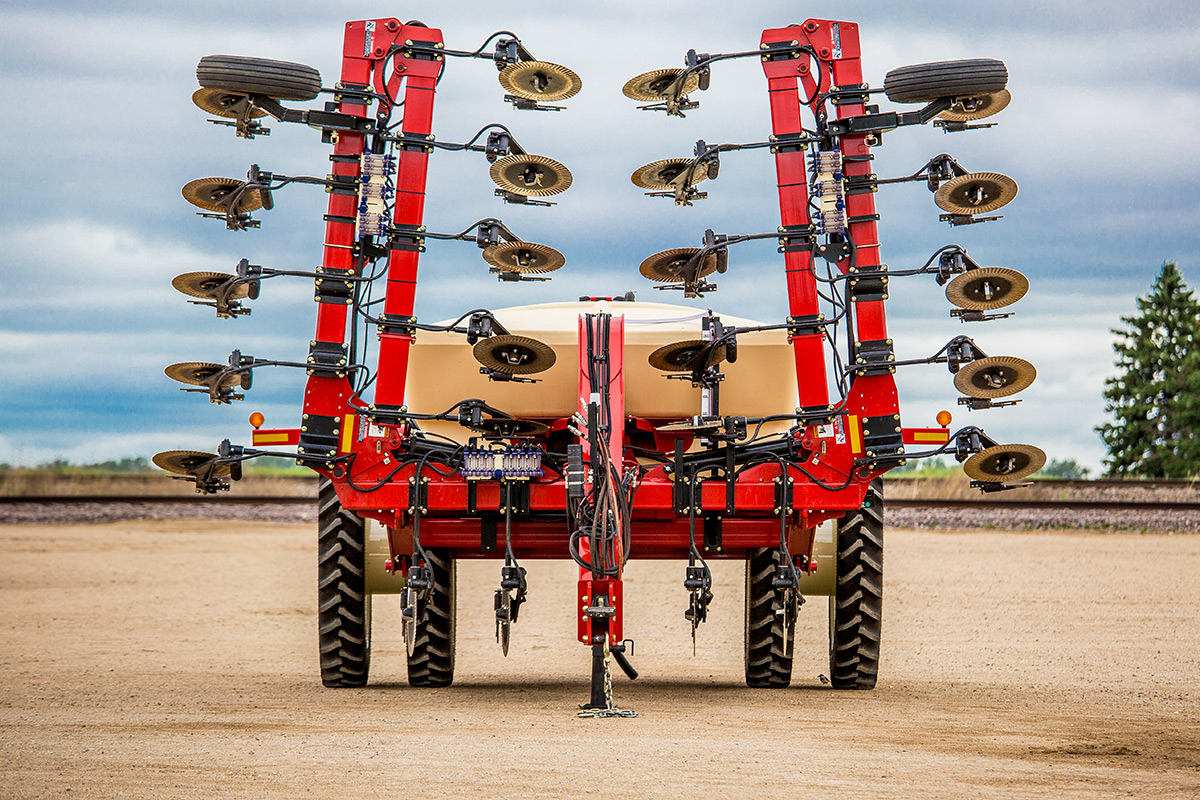

FERTILIZER APPLICATOR Model 1840
The NEW 1840 liquid applicator brings the high-clearance toolbar design and user friendly hydraulic concepts to the mid-size applicator platform.
Combined with the field proven asymmetrical tank design. this robust unit's short wheelbase tracks exceptionally well in all field conditions.
| Model | 1840 |
|---|---|
| Tank Size | 1800 US gallon tank, stainless steel baffle, hopper bottom sump |
| Tool Bar | Available in 20", 22", 30", 38" rows in widths up to 45 ft. Twin cylinder height adjust Adjustable gauge wheels |

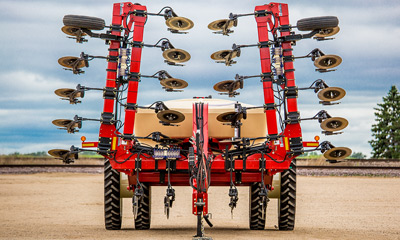

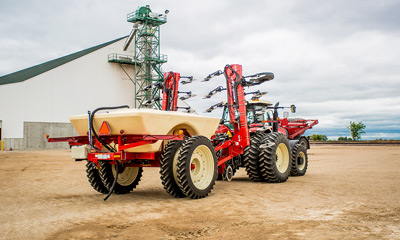

| Transport Width | 17' 9" |
| Transport Height | 13' 3" |
| Transport Length | 21' 8" |
| Empty Weight | 12,680 lb |
AVAILABLE IN THESE COLOURS:
Features

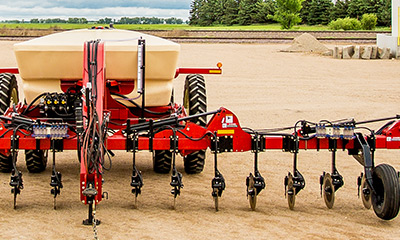

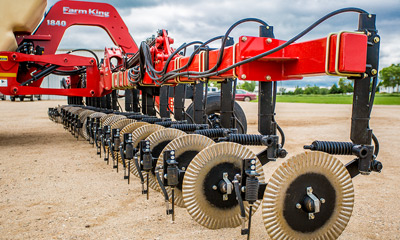

HIGH CLEARANCE TOOLBAR
The Model 1840’s heavy duty toolbar leads the industry with the most crop clearance (36”) and ground clearance (30”) expanding the application window, minimizing crop injury, and maximizing yield potential.
The Model 1840’s heavy duty toolbar leads the industry with the most crop clearance (36”) and ground clearance (30”) expanding the application window, minimizing crop injury, and maximizing yield potential.
USER-FRIENDLY HYDRAULIC SYSTEM
The hydraulic systems allows you to use your tractor’s hydraulic controls during work and transport operations, making it easy and comfortable to operate.
The hydraulic systems allows you to use your tractor’s hydraulic controls during work and transport operations, making it easy and comfortable to operate.

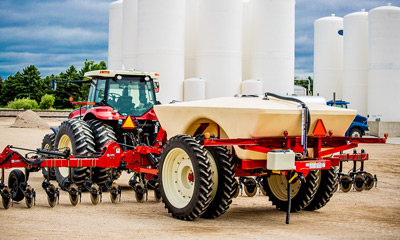

ASYMMETRICAL TANK DESIGN
The purpose built 1800 gallon tank is carried by the implement, not the tractor. There’s no transfer of weight to the toolbar or drawbar, making this unit easier to pull and easier to operate.
The purpose built 1800 gallon tank is carried by the implement, not the tractor. There’s no transfer of weight to the toolbar or drawbar, making this unit easier to pull and easier to operate.
CORE FEATURES
- A wide stance, high clearance, parallel lift linkage
- Heavy-duty 2” inner and 1 1⁄2” outer hinge points
- 7.6 X 15SL gauge wheel rim and tire
- Hydraulic valve block
- Short pin to axle length - 175" wheelbase
- Engineered, laminated, stepped, and fully welded hitch design
- Single piece, welded frame
- Single and dual tire options with fixed and adjustable axles
- Proximity sensors control wing tilt range
- Visual flow monitor system
- Mechanical wing-fold locks
- Transport/Work Mode switch box with a single switch
