PRODUCTS FOR EVERY FARM

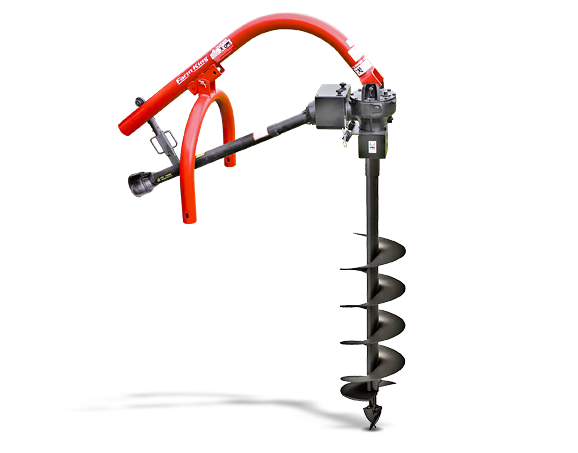

POST-HOLE DIGGER Models 150, 160, 205, 210
THE FARM KING POST HOLE DIGGER USES AN IMPRESSIVE ONE OR TWO FLIGHTING DESIGN TO DIG DEEP INTO THE HARDEST COMPACT SOIL IN ANY REGION.
Each model also comes with a five year limited warranty on most gearbox components. The auger and PTO assembly are held together using heavy-duty tubular steel stock that allows the post hole digger to remain stable under the most grueling conditions. Simply attach the post-hole digger to any three point hitch assembly or skid steer mount, hook up hydraulic lines and the digger is ready for use.
| Model | 150 | 160 | 205 | 210 |
|---|---|---|---|---|
| Main Frame | - | 3" | 3-1/2" | 3-1/2" |
| Gear Ratio | 3:1 | 3:1 | 3:18:1 | 4.1:1 |
| Boom Position | 3 | 3 | 3 | 1 |
| Weight | 149 lb | 160 lb | 206 lb | 210 lb |
Features
- Heavy-duty tubular steel stock on the yoke and booms of all PTO-driven units. Large 2" output shaft has two-bolt auger connection for better power transfer
- Choose from 6" to 30", single and double flighted augers with optional 12" auger extensions (with guards) and special fishtail auger center points
- 3-position boom adjustment on Model 150, 160 and 205 diggers adapt to almost all tractors
- Optional down force kits for 350-500 lb extra pressure when digging conditions get tough
- Shear-bolt protected and shielded PTO driveline
Manuals
| Model 150 | Date Posted |
|---|---|
| Operator and Parts 2022 | June 2022 |
| Operator and Parts Manual - 2010 | July 2010 |
| Model 160 | Date Posted |
|---|---|
| Operator and Parts 2022 | June 2022 |
| Operator and Parts Manual - 2010 | July 2010 |
| Model 205 | Date Posted |
|---|---|
| Operator and Parts Manual - 2010 | July 2010 |
| Model 210 | Date Posted |
|---|---|
| Operator and Parts Manual - 2010 | July 2010 |
