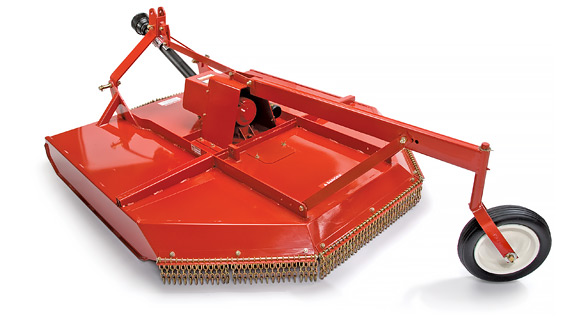

ROTARY CUTTER Series I, II
FARM KING ROTARY CUTTERS ARE MADE TO CLEAR THOSE ROUGH AREAS WHERE STONES, TREE STUMPS AND DEBRIS ARE HIDDEN BY WEEDS.
These rotary cutters, available in two series, easily clear heavy weeds and thick rough and require minimal maintenance. Series I, with a 3-point hitch, is available in 48" or 60" widths. Series II is available in widths of 60", 72" and 84". Two available options include a trailing kit with hydraulic lift or a 3-point hitch.
| SERIES I | |
|---|---|
| Model 418 | 48" (1.2 m) cutting width, 3-pt hitch Cat. I For tractors 20 - 45 hp |
| Model 518 | 60" (1.5 m) cutting width, 3-pt hitch Cat. I For tractors 25 - 55 hp |
| SERIES II | |
|---|---|
| Model 528 | 60" (1.5 m) cutting width, 3-pt hitch Cat. I For tractors 25 - 65 hp |
| Model 628 | 72" (1.8 m) cutting width, 3-pt hitch Cat. II For tractors 35 - 65 hp |
| Model 728 | 84" (2.1 m) cutting width, 3-pt hitch Cat. II For tractors 45 - 75 hp |
AVAILABLE IN THESE COLOURS:
Features
STUMP JUMPER
A 24" stump-jumper is mounted above the blades to the gearbox. Standard on Series II, the stump-jumper allows the blade assembly to glide over uneven terrain.
A 24" stump-jumper is mounted above the blades to the gearbox. Standard on Series II, the stump-jumper allows the blade assembly to glide over uneven terrain.
FEATURES
- The power take-off (PTO) shaft on the Series II 60" includes a shear pin to protect the gearbox in the event of an unforeseen obstacle.
- 3-point hitch models include a single solid rubber or laminated trailing wheel.
- The access panel on the deck makes it easy to replace the blades.
- The 72" and 84" rotary cutters are equipped with a slip clutch to prevent gearbox damage.
- An optional chain kit minimizes the possibility of flying debris.
Manuals
| Series I | Date Posted |
|---|---|
| Operator and Parts Manual 2020 | May 2020 |
| Operator and Parts Manual 2014 | June 2014 |
| Operator and Parts Manual 2013 | November 2013 |
| Operator and Parts Manual 2013 | January 2013 |
| Operator and Parts Manual 2011 | December 2011 |
| Operator and Parts Manual 2011 | August 2011 |
| Operator and Parts Manual 2010 | November 2010 |
| Operator and Parts Manual 2008 | February 2008 |
| Operator and Parts Manual 2007 | February 2007 |
| Series II - 5' & 6' | Date Posted |
|---|---|
| Operator and Parts Manual 2020 | May 2020 |
| Operator and Parts Manual 2016 | May 2017 |
| Operator and Parts Manual 2012 | November 2015 |
| Series II - 7' | Date Posted |
|---|---|
| Operator and Parts Manual 2020 | May 2020 |
| Operator and Parts Manual 2016 | May 2017 |
| Operator and Parts Manual 2012 | October 2012 |
| Series II | Date Posted |
|---|---|
| Operator and Parts Manual 2012 | February 2012 |
| Operator and Parts Manual 2011 | July 2011 |
| Operator and Parts Manual 2010 | November 2010 |
| Operator and Parts Manual 2008 | February 2008 |
| Operator and Parts Manual 2007 | September 2006 |
| Operator and Parts Manual 2006 | September 2005 |
| Operator and Parts Manual 2005 | January 2004 |
| Operator and Parts Manual 2004 | November 2003 |
